Code # : NMO1P1DS

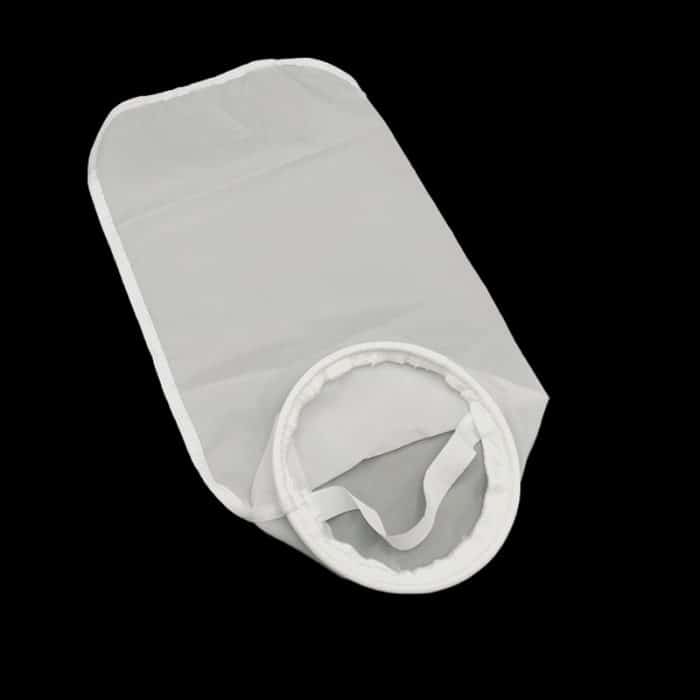

1 Micron – Nylon Monofilament Mesh Liquid Filter Bag, Drawstring,Size #1

The NMO1P1DS is a 1 Micron size #1 (7.06" x 16.5") Nylon Monofilament Mesh liquid filter bag with a drawstring. These nylon mesh bags are a single strand mesh designed for economical use and suitable for applications using vessel or open filtration systems. Industries that would need liquid filter bags consist of chemical, food, paper, petroleum, adhesives, paints and many others.

Additional Information

More Information
Material Nylon Monofilament Mesh
Size 1 (7.06″ x 16.5″)
Micron Rating 1 Micron
Seam Type Sewn
Ring Style Draw String
Case Pack 25 ea.
Pallet Pack 2,000 ea. (80 Cases)
FDA Approved Yes
Dimensions 7.06″ Dia. x 16.5″ H
Country of Manufacture United States
Model NMO1P1DS

Specifications

About Standard Mesh Liquid Filter Bags (Monofilament & Multifilament)

Key benefits

  • Micron ratings from 1 to 1500
  • All industry standard and custom sizes available
  • High flow/low pressure drop media
  • Surface-retention filtration
  • Wide chemical compatibility
  • Sewn construction
  • Handles standard on all bags
  • Choice of steel ring or plastic flange
  • Economical removal of non-deformable contaminants
  • Non-fiber releasing
  • Good removal effiencies
  • Temperature ratings to 350°F
  • Polyester and nylon materials meet FDA regulations for contact under CFR21, section 177.1520
  • Silicone-free construction

Mesh Bag Materials
Multifilament Mesh media is woven from threads made of smaller fibers. Bags made from this material are low cost and disposable.

Monofilament Mesh is woven from single-fiber threads. The openings are square and uniform. Bags made from this material have excellent strength.

Mesh Bag Styles
Steel-ring bags have a galvanized steel ring (stainless steel optional) sewn into the top of the bag. They are supplied with sewn seams standard.

Plastic flange bags have a specially-designed flange sewn to the top of the bag. They are supplied with sewn seams standard (welded collars available upon request).

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility.

Disclaimer:

This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.
