Product name: | PARKER high flow filter cartridge |
---|---|
Filter Media | Polypropylene Pleated |
Length | 20″(508mm), 40″(1016 mm), 60″(1524mm) |
Outside Diameter | 6 inch(152mm) |
Filtration Rating | 1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm |
Support/Drainage | Polypropylene (PP) |
End Cap Material | Glass fiber reinforced Polypropylene (PP) |
Center Core | Polypropylene |
Outer Support Cage | Polypropylene |
- Specifications
-
3M High Flow Filter Cartridges Description
3M High flow filter cartridge adopts imported high performance PP non-woven fabrics to optimize its filtration performance and fluid quality to ensure our customers’ satisfaction. The filter cartridge adopts horizontal pleats design to make the filter cartridge has a large effective filter area. Meltdown PP microfibers have strictly controlled fiber diameters to ensure its absolute filter rating. Pleating technology ensures the filter material is pleated in a more uniform way. The evenly distributed liquids in the whole filter material makes the full use of the filter area. In this design, we can ensure the filtration effect in a more compact and smaller space and its large inner diameter allows the flow of single cartridge up to 1900 liters per minute.
Why Choose Ince’s 3M High Flow Filter Cartridges
- Ince’s 3M High Flow Filter Cartridge accommodates up to 500 GPM with a compact design.
- Consistent quality water is achieved by reducing particulate matter and removing chlorine.
- Long-lasting and cost-effective, the cartridge has a long lifespan and requires fewer replacements.
- Suitable for various applications, such as water purification, beverage processing, and pharmaceutical manufacturing.
3M High Flow Filter Cartridges Details

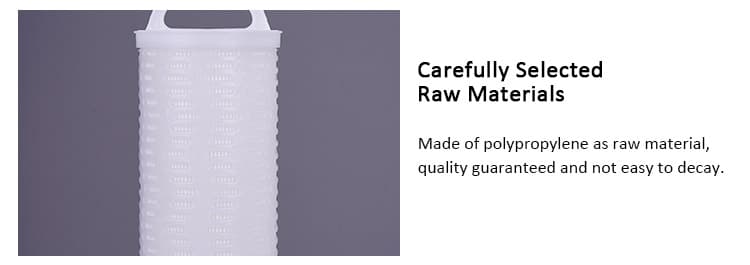

- Carefully SelectedRaw Materials
Madeofpolypropyleneasrawmaterial,qualityguaranteedandnoteasytodecay
- Layered Filtering
Productstructure:mulƟ-layergradient fifiltraƟon,scienƟfificdiscounƟngprocess,seamlesswelding,largedirtholding capacity,andhighfifiltraƟoneffiffifficiency.
- Customized On Demand
Various types of non-standard filter elements can be customized according to different needs of customers.
3M High Flow Filter Cartridges Features:
- Easy to install and replace, save manpower and times
- High flow pleated cartridges are high intensity and long service life
- Wide range of chemical compatibility and suitable for a variety of fields
- Pleated high flow cartridges are large flow rate and high dirt holding capacity
- The sealing O-ring design no bypass to improve the filtering efficiency of high flow cartridge filters
- Used for water treatment system requiring large flow, longer service life and high dirt holding capacity
3M High Flow Filter Cartridges Applications:
- 1.Condensate polishing
- 2.Chilled water, saline water, finished product electronic applications
- 3.Boiler supply water treatment
- 4.Resin capture in petrochemical applications
- 5.Oil well reinjection water, produced, completion fuid, amine fluid desulfurization and final product chemical
applications - 6.RO prefiltration, wastewater reuse, condensate water, nozzle protection, food & beverage, pharmaceuticals and
other applications

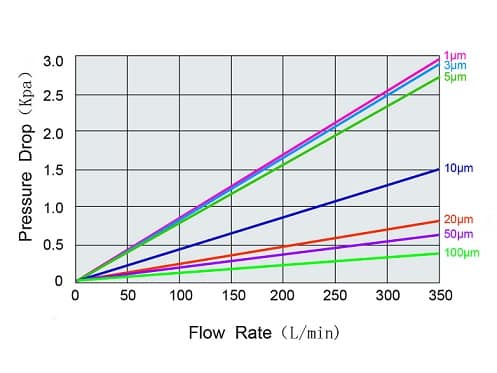

3M High Flow Filter Cartridges Performance:
Operation Date for MF Series Pleated High Flow Cartridges
Maximum Operating Temperature 80℃ Maximum Differential Pressure 3.4Bar @ 82℃ Replacement recommend pressure drop 2.4Bar @ 20℃ Suggested Maximum Flow Rate 40″(1016 mm) – 1300 LPM Flow Rate for 40″ MF Series Pleated High Flow Cartridges
Search: Select from the options below to search our selection of 3M High Flow Filter Cartridges. For questions or custom orders please Contact Us.
Disclaimer:
This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.Tell us what you need, and we'll help you get quotes
