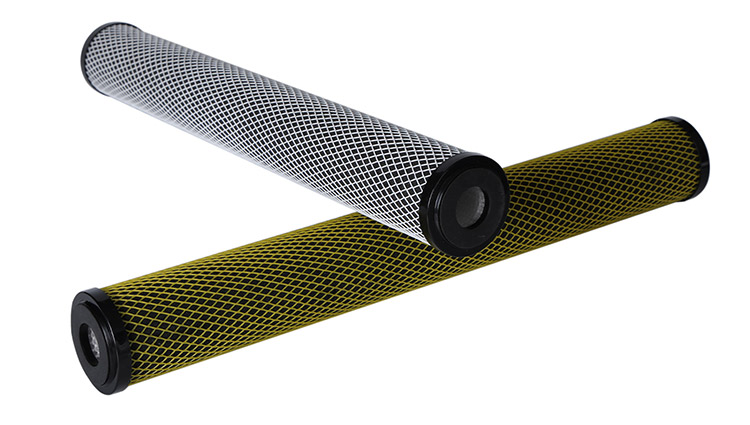

Carbon Impregnated Cellulose Filter Cartridges are constructed with wrap carbon impregnated cellulose and activated carbon fine for good absorption, including considerably high carbon content. The polyester fiber external netting provides additional strength and high dirt loading capacity. The inner fiber felt of carbon impregnated cartridges keep the carbon particles and pollutants away from the filtered liquid, while the central core enhances the ability to withstand pressure. Carbon impregnated cellulose filters possess especially splendid functions of fine sediment removal, chlorine deduction and organic chemical removal, therefore, providing high filtration efficiency in water processing.
| Product name: | Activated Carbon Filter Cartridges |
|---|---|
| Filter Media | Carbon Impregnated Cellulose |
| Length | 5″, 9.75″, 9.8″, 10″, 20″, 30″ According to customers requirements |
| Inside diameter: | 28mm Special ID can be customized |
| Outside Diameter | 2.5″(63mm) Special OD is accepted |
| Filtration rating: | 5μm, 10μm |
| End cap: | Plastisol |
| Center core: | Polypropylene |
| Gasket/O-ring: | Silicone, Buna-N, EPDM |
| Netting: | Polyethylene |
| Maximum operating temperature: | 52*C(1259F) |
| Max. differential pressure: | 4.5bar at 259C (65 psi at 77°F) |
| Recommended change out differential pressure: |
2.1 bar(31 psi) |
- Specifications
-
Activated Carbon Filter Cartridges Description
Carbon Impregnated Cellulose Filter Cartridges are constructed with wrap carbon impregnated cellulose and activated carbon fine for good absorption, including considerably high carbon content. The polyester fiber external netting provides additional strength and high dirt loading capacity. The inner fiber felt of carbon impregnated cartridges keep the carbon particles and pollutants away from the filtered liquid, while the central core enhances the ability to withstand pressure. Carbon impregnated cellulose filters possess especially splendid functions of fine sediment removal, chlorine deduction and organic chemical removal, therefore, providing high filtration efficiency in water processing.
Why Choose Ince’s Activated Carbon Filter Cartridges
- Pall filter cartridges offer high flow rates, consistent output, extended service life, versatility, and quality construction.
- Their proven technology makes them a reliable choice for businesses of all industries.
- With Our design and construction, We promise an increased efficiency that leads to cost savings in the long term.
Activated Carbon Filter Cartridges Details
- Strong outer netting for surface integrity and more durable.
Inner layer is surrounded by a nonwoven fabric to assure no carbon bleed-off.
- Vinyl Plastisol molding endcaps provide a completely sealing to prevent chlorine & dirt leaking out.
- The center polypropylene core both increases pressure-bearing capacity and reduces deposits.
- Customized On Demand
Various types of non-standard filter elements can be customized according to different needs of customers.
Activated Carbon Filter Cartridges Features:
- 1.Carbon impregnated cellulose filters have premium dirt-holding capacity.
- 2.Carbon cellulose filters provide depth filtration for fine chemical applications.
- 3.Carbon impregnated cartridges are manufactured entirely from FDA-compliant materials.
- 4.Impregnated carbon filters have high chlorine taste & odor and bad taste & odor reduction.
- 5.Carbon impregnated cartridges possess high flow rate & long service life with consistent of performance.
Activated Carbon Filter Cartridges Applications:
- Potable & Process Water
- Food and Beverage
- Plating Solutions
- Chemical Processing
- Pre or Post Filtration for RO Systems
- Water purification Systems
Dimension Outer Diameter 48.5mm, 65mm, 70mm, 115mm Inner Diameter 16.5mm, 28mm, 30mm Length 9.75”, 9.87”, 10”, 20”, 30”, 40” Material of Constructions Media Acid washed coconut based activated carbon End cap PP Gasket EPDM Netting PE Performance Max. Operating Temperature 52℃(125.6℉) Max. Operating DP 7.2 bar (104 psi)@20℃(68℉) Max. Operating Pressure 10 bar (145 psi)
Activated Carbon Filter Cartridges Performance:
Operation Data for Carbon Impregnated Cellulose Filter Cartridges
Maximum Operating Temperature 52℃(125℉) Max. Differential Pressure 4.5 bar at 25℃ (65 psi at 77℉) Recommended Change Out Differential Pressure 2.1 bar(31 psi) Search: Select from the options below to search our selection of Activated Carbon Filter Cartridges. For questions or custom orders please Contact Us.
