Microlab Cartridge filters are simply quality filters, well packed, and offered at a fair and competitive price. Each filter is finished integrity test before selling. The Classic range is available in all of the major membranes including PP, PTFE, PES, MCE,Nylon, GF, PFA, and PVDF which comes in various sizes for filtration big volumes solutions.
Product name: | pleated filter cartridge |
---|---|
Media: | PP,PES ,Nylon,PTFE |
Filter rating: | 0.1,0.22, 0.45, 1,3, 5, 10, 20, 30, 50um |
Length: | 5″, 10″, 20″, 30″, 40″ |
Outer diameter: | φ68 mm |
Inside diameter: | φ28 mm |

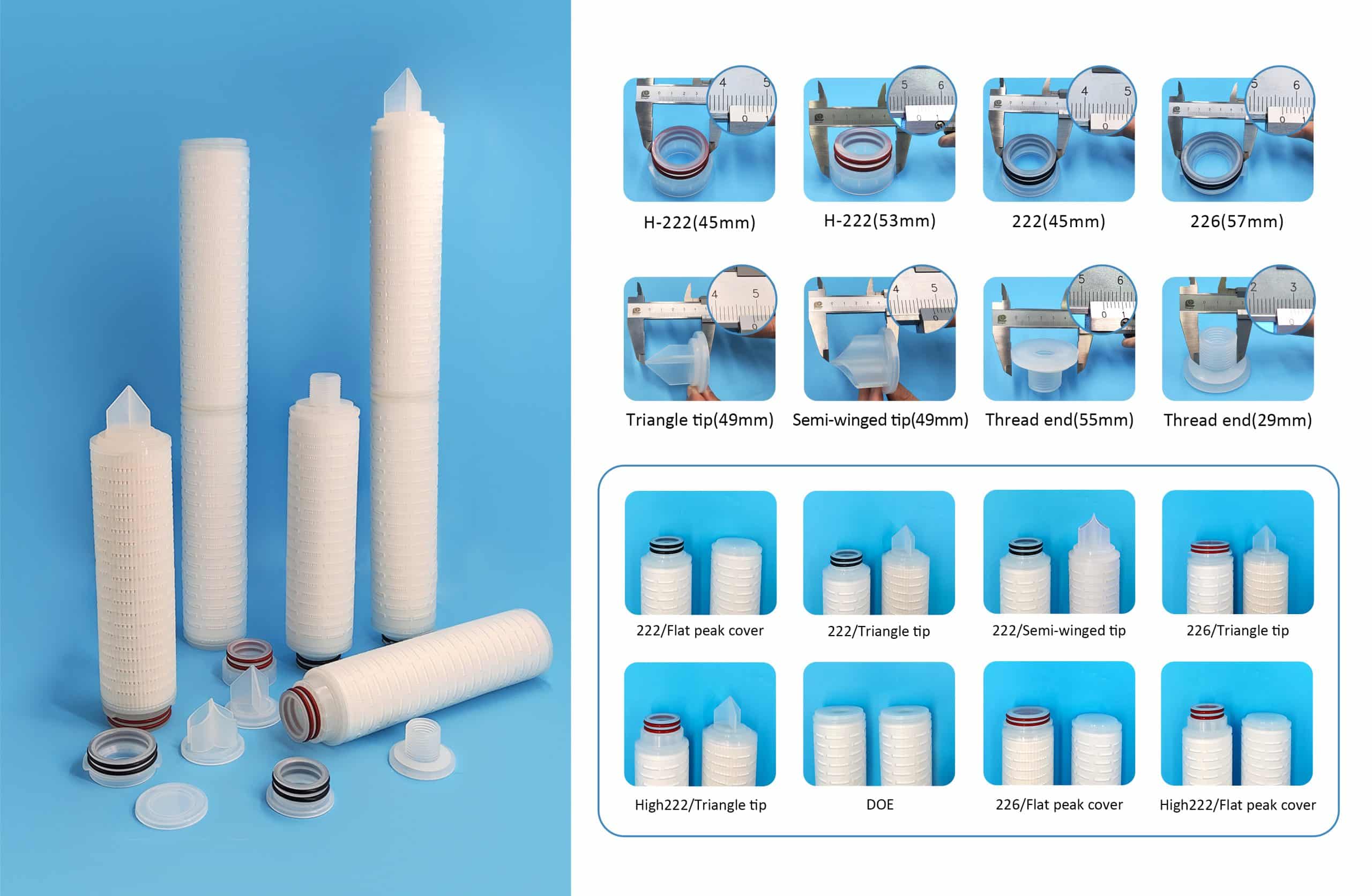

Connection type: | 215 222 226 M30 M36 |
Endotoxin: | The water extract of the filter column is tested by IAL, and the endotoxin content is less than 0.5 EU/ml |
- Specifications
-

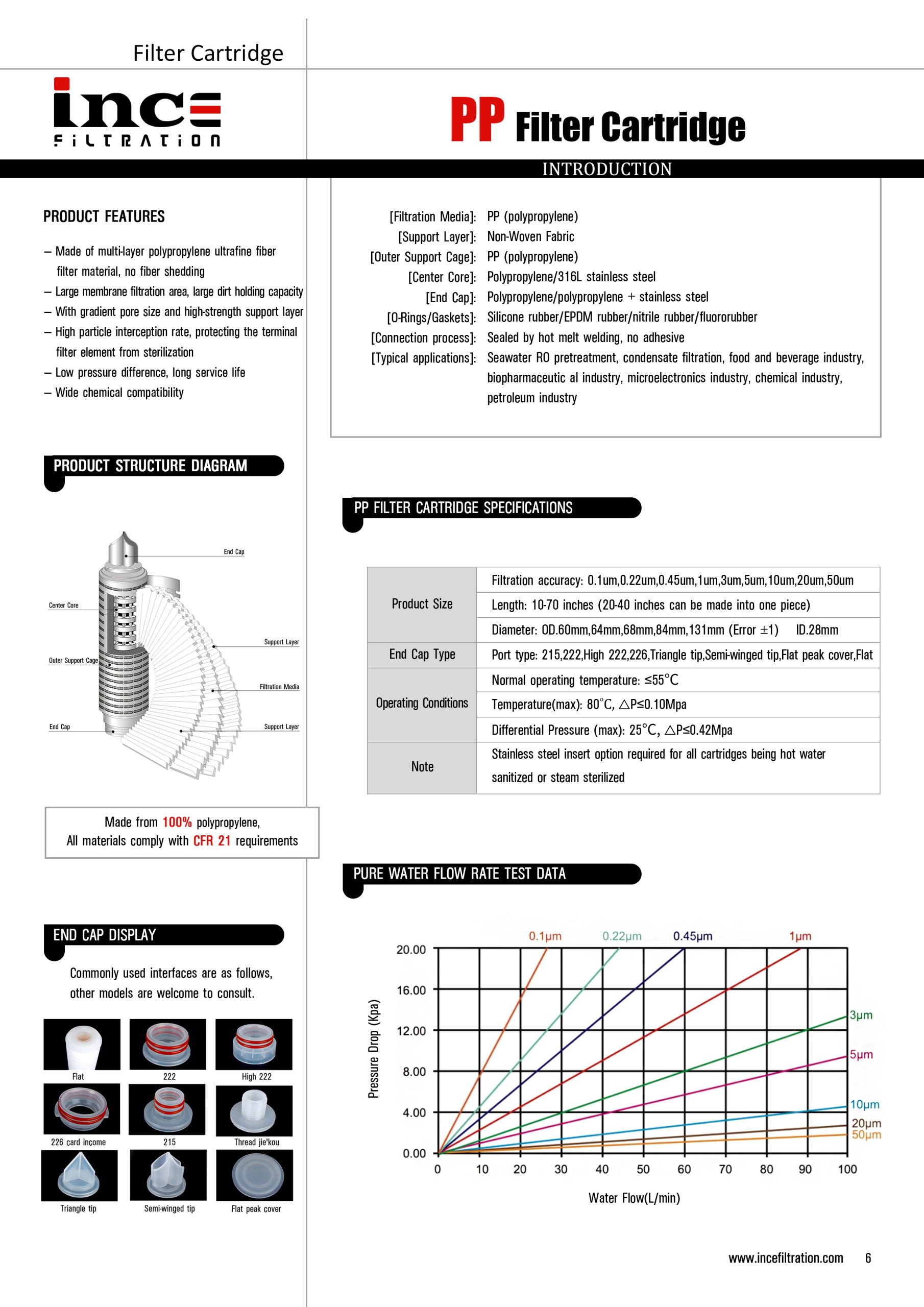

PP Pleated Filter Cartridges Description
Microlab Cartridge filters are simply quality filters, well packed, and offered at a fair and competitive price. Each filter is finished integrity test before selling. The Classic range is available in all of the major membranes including PP, PTFE, PES, MCE,Nylon, GF, PFA, and PVDF which comes in various sizes for filtration big volumes solutions.
Dimensionø69mmø83mmø131mmFiltration Area0.6m²/10″1.45m²/10″2.3m²/10″Length10″, 20″, 30″, 40″The material of constructionsFiler media: Nylon66,PTFE, PTFE/L, PVDF/L, PES, PVDF/B, GF,PPSupport Layer: PPCage/End cap: PPCore:PP, SSSealing: S=Silicone, E=EPDM, B=NBR, T=Teflon, V=Viton, E=FKMConnection typeF=DOE, H=213/Flat, J=222/Flat/ss, K=222/Fin/ss, M=222/Flat, P=222/Fin, Q=226/Fin, T=226/Flat, R=226/Fin/ss, V=226/Flat/ss,Operation conditions[Max. Operating Temperature]: 80℃
[Max. Operating DP]:4 bar@ 21℃,2.4 bar @80℃.Selection GuiderApplicationNylon66 Series filter cartridge is constructed of nylon66 media and nonwoven support materials. The adaptors are thermally welded
without the use of glues or adhesive to prevent any possibility of pollution. The filters are produced in clean room and 100%
integrity tested and flushed with ultrapure water1. Wine, beer, mineral water, pure water filtration.
2. Solvents filtration
3. Fine chemical
4. Ultrapure water

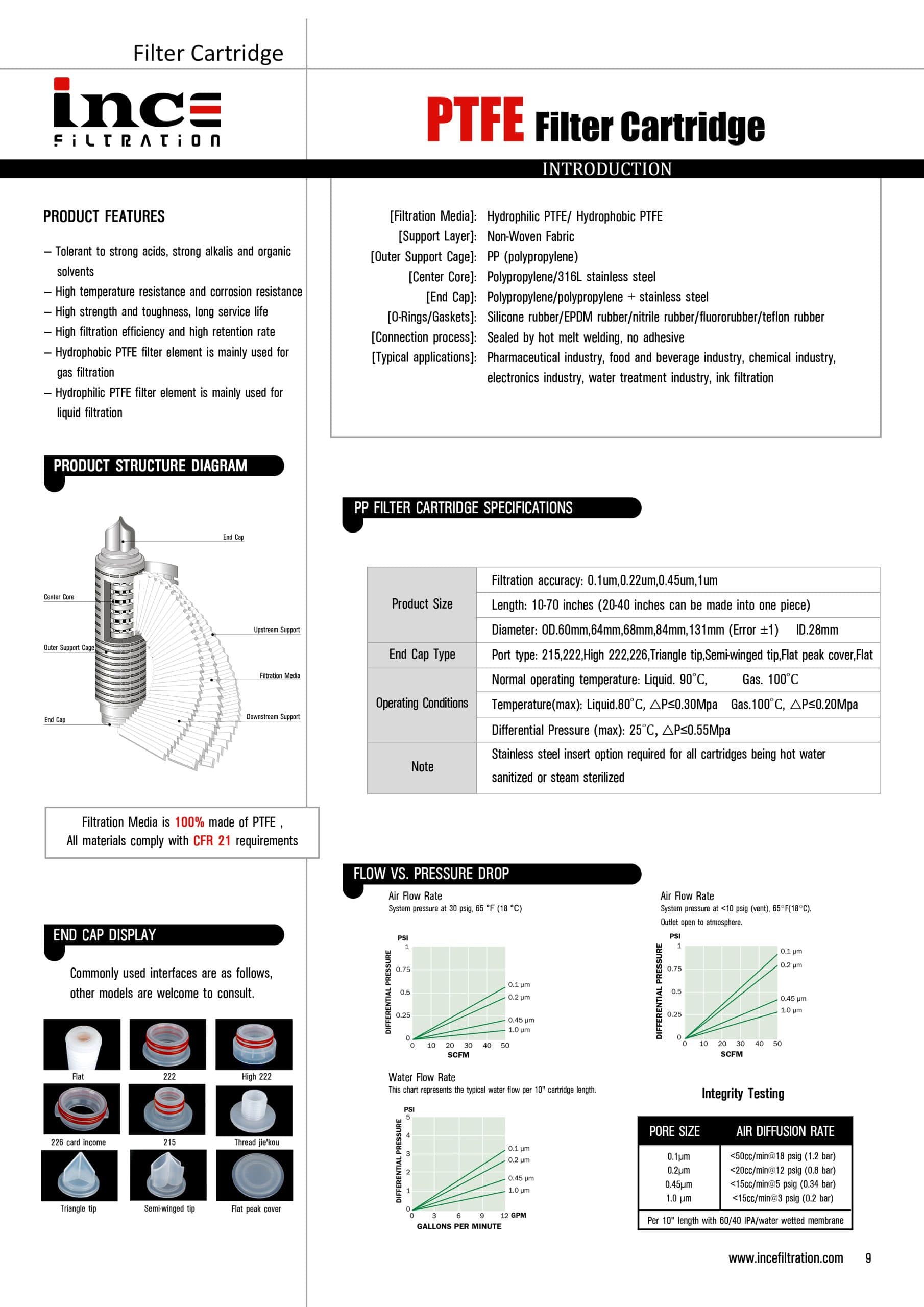

5. Digital inksHydrophobic PTFE Series filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility
and corrosion resistance. This filter cartridge is suitable for the filtration to liquids and gases with strongly aggressive and
oxidative.1. Compressed air, CO2Line Sterile filtration
2. Tank Vent
3. Aggressive acids, bases, solventsHydrophilic PTFE Series filter cartridge is constructed of hydrophilic PTFE membrane which has excellent chemical compatibility
and corrosion resistance.The membrane is hydrophilic which can filter the liquid directly without pre=wetting to save the
operation time.1. Mineral water, purified water, ozone, strong, oxidizing liquid filtration
2. High temperature liquids filtration
3. Strong alkali, acids, corrosive liquids filtrationHydrophilic PVDF Series filter cartridge is constructed of hydrophilic PVDF microporous membrane with excellent resistance to high
temperature and corrosion resistance, no fiber shedding. Filter media has good hydrophilicity, no need to do a pre=wetting
treatment before filing water solutions.1. Oil & Chemical
2. Ophthalmics, WFI
3. Tissue Culture Media and Media a additives

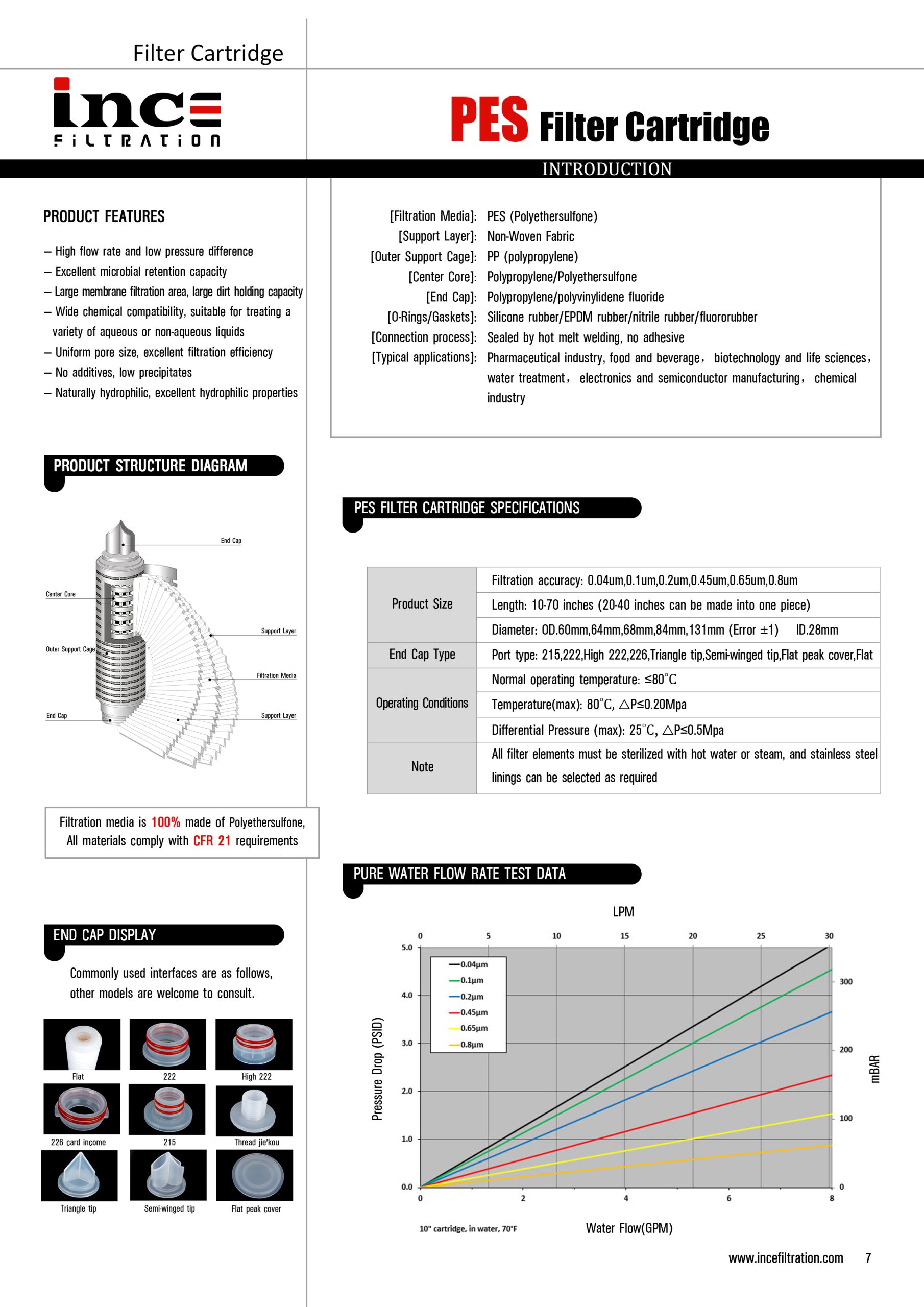

4. Strong Alkaline, acids solventsPES Series cartridge filter is constructed of imported hydrophilic asymmetric PES membrane and imported non=woven fabrics and silk
netting as support and then pleated. The cage, PP core and end cap are thermally welded with media without using any glue. All
cartridges are manufactured and assembled in a cleanroom environment. 100% of the cartridges are integrity tested and flushed with
EDI pure water. It is suitable for filtering weak acid/alkali based liquid and ultra=pure water.1. Mineral water, Wine, beer and other Beverages.
2. Ultrapure Water
3. Chemicals
4. API, LPV, blood serum, biological, Buffers and other pharmaceuticalsPP pleated filter cartridge is constructed of high-performance polypropylene filter media that got technological breakthrough type
sub-micro level. The pores of the material are uniformly distributed. The construction is designed scientifically which makes the
filter cartridge got a high flow rate. This allows users can filter the particles in liquid quickly and efficiently and save the
cost.1. Ink
2. Oil & Chemical
3. Plating
4. Semi-Conductor
5. Food&beverage
6. Industrial Water TreatmentMCE Pleated Filter cartridge is constructed of CN-CA Membrane filter mediaPFA Series filter cartridges are constructed of PTFE absolute=rated membrane, PTFE support netting, and ultra=pure PFA hardware.
This presents a filter cartridge with excellent chemical compatibility, corrosion resistance, and low extractions to ensure
high=efficiency filtration and long service life with chemicals.1.Machinery&EquipmentGlass Fiber seriesBig pleated filter cartridge is designed for the filtration of the manufacture wetting process in the flat panel display. It has a
larger filtration area and a higher flow rate. 83 series can meet the 5=6 grade line which has a requirement of 120 L/min flow
rate, 131 series can meet the 7=10 grade line which has requirement of 250 L/Min flow rate.1.Industrial Water 2.Treatment
3.D. I. Water
4.Acids
5.SemiconductorORDER INFORMATION
For example “CPNY010Q10SP”Nylon Cartridge Filter, OD 69mm, Length 10”, 0.1um, 226/Fin, Silicone O-ring, pp core.SeriesFilter MediaRemoval RatingEnd Cap TypeLengthSealing MaterialCoreCP=69mm
CP1=83mm

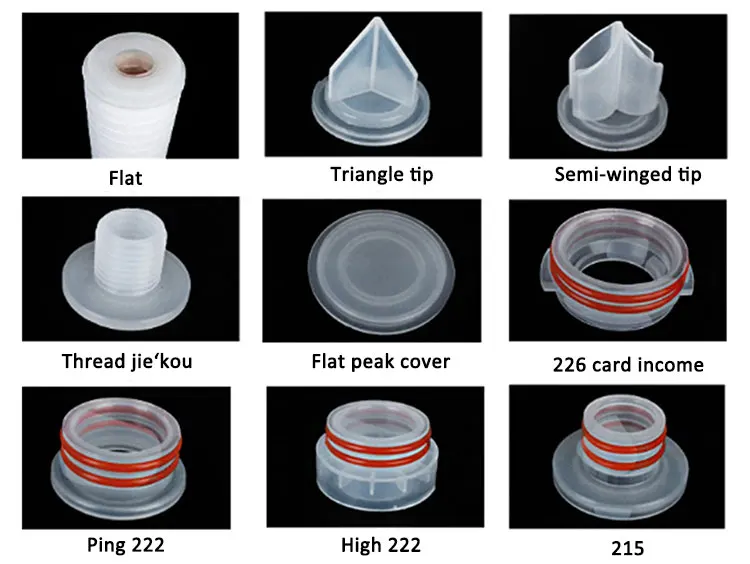

CP2=131mmNY=Nylon66010=0.1μmF=DOE5=5”SP=PP CorePTB=PTFE022=0.22μmH=213/Flat10=10”ES=SS CorePTL=PTFE/L045=0.45μmJ=222/Flat/SS20=20”BPVB=PVDF10=1.0μmK=222/Fin/SS30=30”VPVL=PVDF/L30=3.0μmM=222/Flat40=40”TPES=PES50=5.0μmP=222/FinFPP=PP100=10μmQ=226/FinGF=Glass FiberT=226/FlatPFAR=226/Fin/SSV=226/Flat/SSWhy Choose Ince’s Pleated Filter Cartridge
- Ince’s PP Filter Cartridges are made of durable Polyethersulfone material to ensure excellent filtration capabilities.
- Compatible with a wide range of chemicals, they are suitable for various industrial applications.
- Designed for high flow rates, the cartridges guarantee efficient and effective filtration.
- They offer thermal stability in demanding conditions.
- Ince provides outstanding customer service to maximize product benefits.
Pleated Filter Cartridge Details
Pleated Filter Cartridge Features:
- Polypropylene pleated cartridges are strict-election materials according toFDA standard.
- PP pleated cartridges are with low pressure drop, high capacity of impurities and long service life.
- PP pleated cartridge filters are manufactured in clean room, maintaning high cleaning environment.

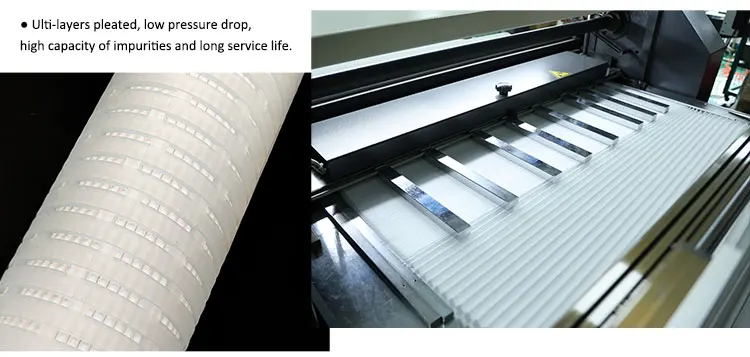

- Ulti-layer structure, good filtration efficiency and consistent performance for broad application range.
- The components of PP pleated filters are assembled in fully sealed condition by thermal bond, free of binders.
Pleated Filter Cartridge Applications:
- Food and beverage industry: prefiltration of bottled water, beverages, fruit juices, alcohol, etc.
- Biomedical industry: prefiltration of preparations and biological products, compressed air and gas prefiltration.
- Microelectronics industry: pure water equipment for manufacturers of semiconductors and panels, and prefiltration of reverse osmosis water.
- Chemical industry: prefiltration of chemical raw materials such as organic solvents, electroplating and other general acids and bases.
- Petroleum industry: prefiltration of oilfield downhole water injection
Search: Select from the options below to search our selection of Pleated Filter Cartridge. For questions or custom orders please Contact Us.
Disclaimer:
This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.Tell us what you need, and we'll help you get quotes
PP Pleated Filter Cartridge
Replacement 3M High Flow Filter Cartridges
Replacement Pall High Flow Filter Cartridges
Replacement PARKER High Flow Filter Cartridges
Hydrophobic PTFE Membrane Pleated Cartridges
Activated Carbon Filter Cartridges
Melt Blown Filter Cartridge
Hydrophilic PTFE Membrane Pleated Filters

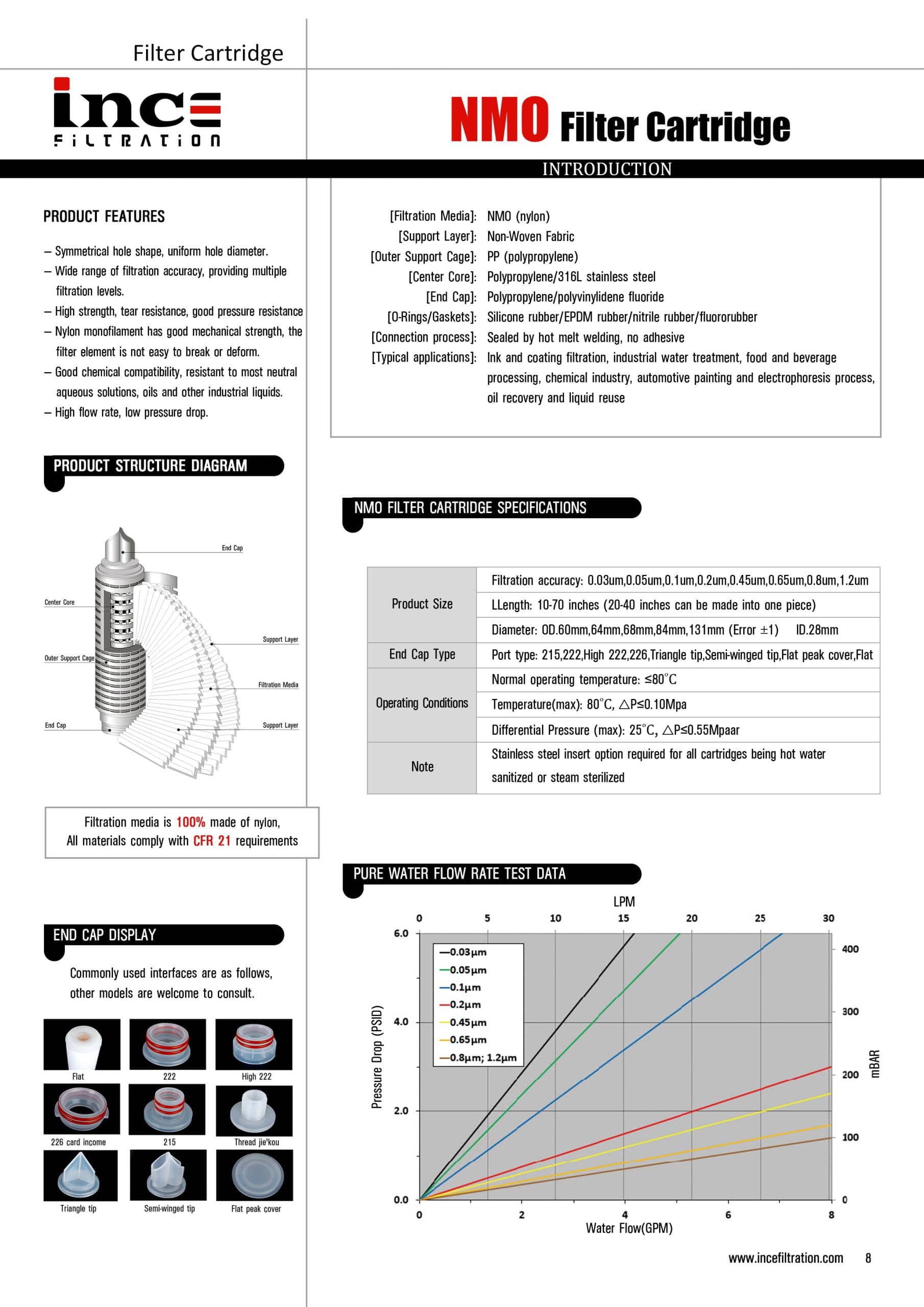

Nylon Pleated Filter Cartridges
