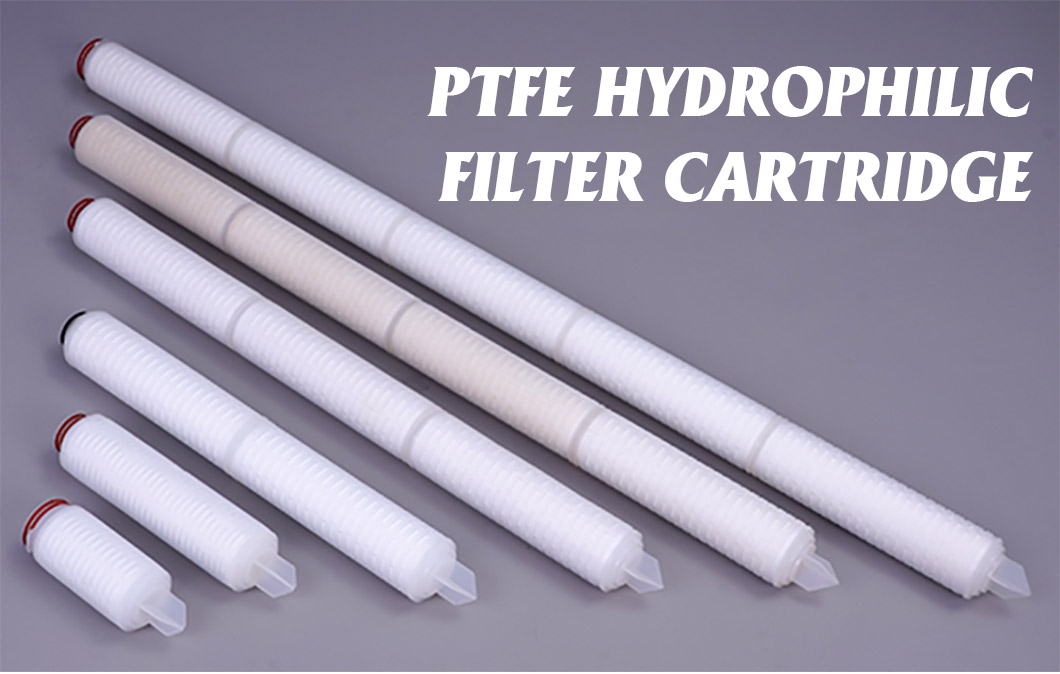

PTFE hydrophilic pleated filter cartridge
PTFE hydrophilic pleated filter element is made of hydrophilic polytetrafluoroethylene (PTFE) filter membrane. In addition to its excellent chemical compatibility and corrosion resistance, due to the characteristics of the hydrophilic filter material, it does not require pre-wetting treatment, It can filter aqueous solutions, greatly saving operation time.
|
Product name:
|
PTFE hydrophilic filter element
|
|||
|
Media:
|
Hydrophilic PTFE membrane
|
|||
|
Support/Diversion Layer:
|
PP
|
|||
|
Shell/Center Rod/End Cap:
|
PP
|
|||
|
Sealing material:
|
Rubber
|
|||
|
Lengh:
|
10″、20″、30”.40″
|
|||
|
Outer diameter:
|
69mm
|
|||
|
Maximum operating temperature:
|
80°C
|
|||
|
Maximum working pressure difference:
|
4 bar@ 21°C ; 2.4 bar@80°C
|
|||
Features:
1. PTFE membrane material has excellent chemical compatibility and good tolerance to various liquid materials and can be used to filter a variety of highly corrosive liquids.
2. PTFE membrane material has absolute pore size accuracy, which can provide high filtration efficiency and ensure the removal of impurity particles.
3. PTFE membrane material has excellent chemical compatibility and good tolerance to various chemicals. It can be used to filter corrosive liquids such as various etching liquids and stripping liquids.
4. The filter element is 100% inspected for integrity.
PTFE hydrophilic pleated filter cartridges are a type of filtration system used to remove impurities and contaminants from liquids. PTFE, or polytetrafluoroethylene, is a synthetic fluoropolymer known for its excellent chemical resistance, high-temperature resistance, and low friction properties.
The hydrophilic property of these filter cartridges means that they have an affinity for water or other polar liquids, allowing them to effectively filter out water-based contaminants. The pleated design of the filter cartridges provides a larger surface area, increasing the filtration efficiency and capacity.
These filter cartridges are commonly used in various industries, including pharmaceuticals, food and beverage, electronics, and water treatment. They are suitable for applications where the removal of bacteria, particles, and other impurities is crucial.
The PTFE material used in these filter cartridges ensures that they are resistant to a wide range of chemicals, making them suitable for filtering aggressive liquids and solvents. Additionally, PTFE has a non-stick surface, which prevents the buildup of contaminants and allows for easy cleaning and maintenance.
The pleated structure of these cartridges allows for a higher dirt-holding capacity, reducing the frequency of filter replacements and minimizing downtime. The pleats also provide a more efficient flow rate, ensuring a consistent and reliable filtration process.
Overall, PTFE hydrophilic pleated filter cartridges are a reliable and efficient solution for liquid filtration applications, offering excellent chemical resistance, high-temperature resistance, and superior filtration performance.
