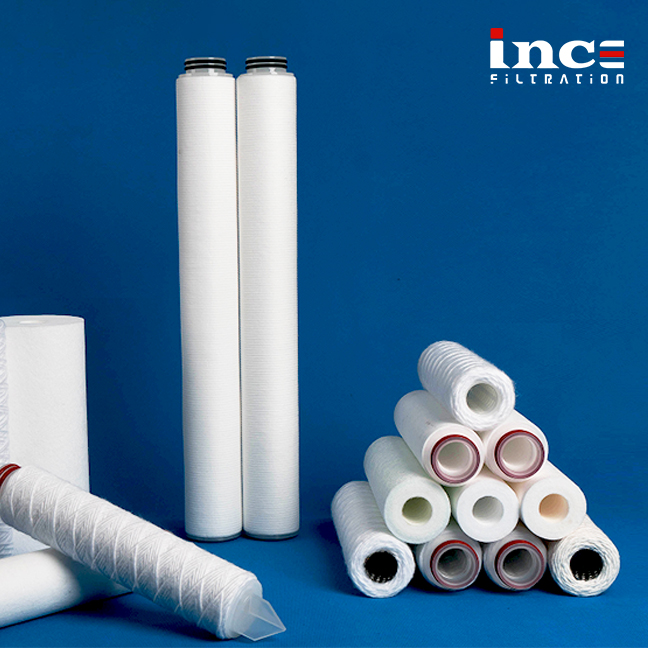

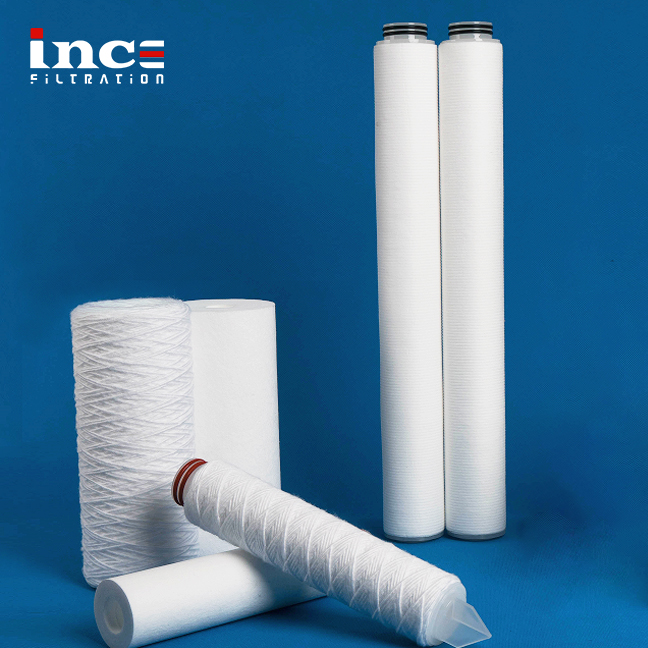

String Wound Filter Cartridge

String wound cartridge filters are manufactured by honeycomb construction with FDA approved polypropylene, bleached cotton or glass fiber wound yarn materials with pp or stainless steel central core, outer layers are loose while inner layers are tight. Wound yarn cartridge filters strengthen the density design provide high flow rate and low pressure drop, improved dirt holding capacity make string wound filter cartridges more effective to meet a variety of industrial processing requirements, such as Pre-RO filtration, Food & Beverage, Chemical Filter Solution, Waste Water Treatment, Petrochemical Process, Electronics & Semiconductor etc.

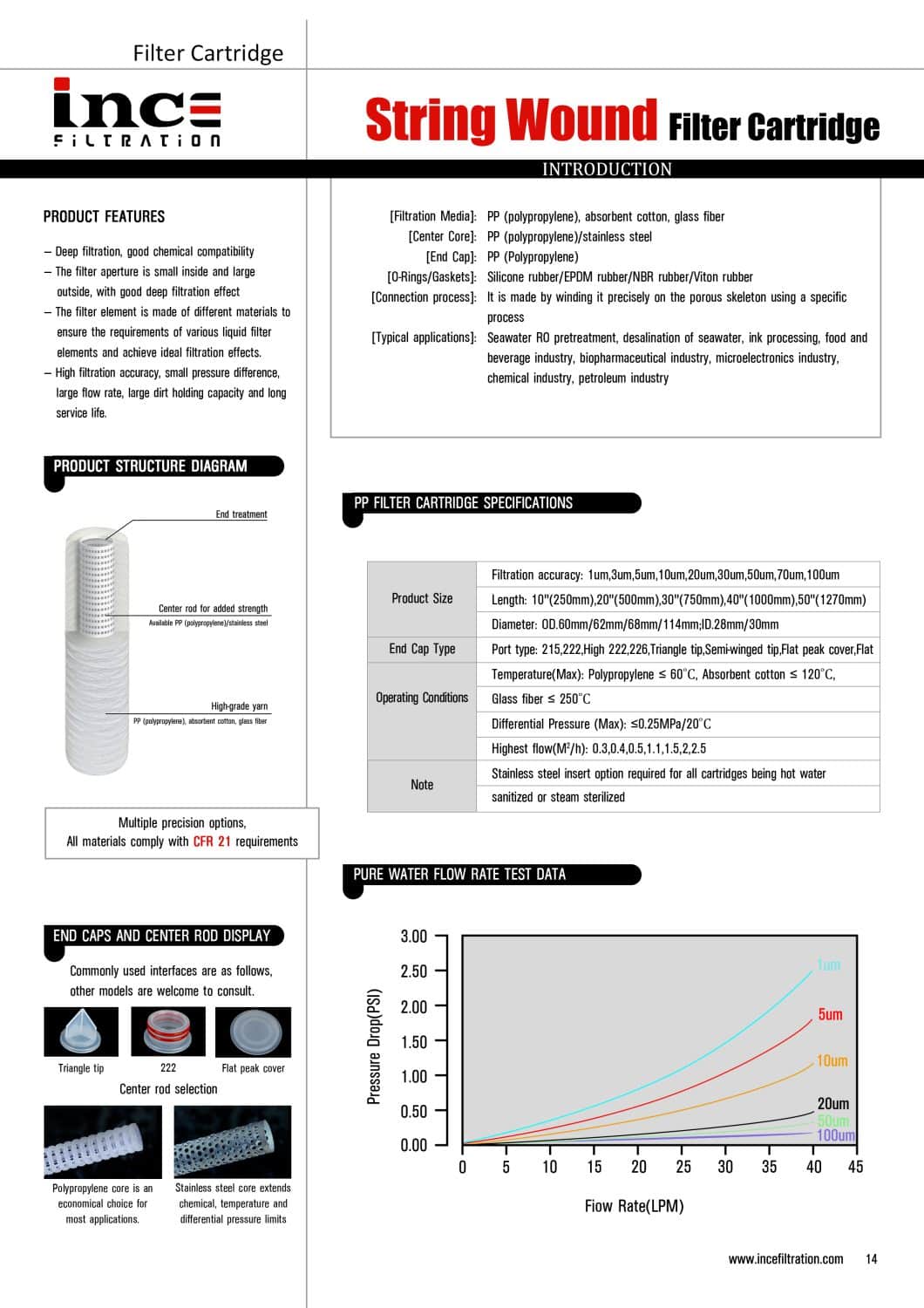

Product Specifications

Product Detail

Product name:	String wound filter cartridge
Winding material:	Polypropylene yarns, Skim cotton yarn, Fiberglass material etc
Skeleton material:	PP or Stainless steel
Outer dimensions:	250 mm, 500 mm, 750 mm, 1000 mm, 10″, 20″, 30″, 40″
Microns:	1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 70 μm, 100 μm
Temperature resistance:	Plastic skeleton polypropylene yarn core: 70 °C; Stainless steel skeleton polypropylene yarn core: < 90 °C; Stainless steel skeleton absorbent cotton yarn core: <120 °C.
Flow rating:	Take filter cartridge with a length of 250 mm at a differential pressure of 0.02 MPa and media is clear water at room temperature as an example. Filter rating (μm): 1, 3, 5, 10, 20, 30, 50 High flow rating (m³/h) 0.3, 0.4, 0.5, 1.1, 1.5, 2, 2.5

Interested in larger quantities?

Request a Quote Request a Sample

Mail Us: sales@incefiltration.com

Specifications

String Wound Filter Cartridge Description

String wound filter cartridge is a kind of filter cartridge for depth filtration at low viscosity and low impurity content conditions. It is made of textile fiber yarn (polypropylene yarns, skim cotton yarn, etc.). These yarns are precisely wound on the porous skeleton (PP or stainless steel) to form a honeycomb structure that is loose outside and dense inside. As a result, it offers excellent filtration and bsorption performance and can effectively remove suspended solids, fine particles, rust and other impurities from fluids.

Why Choose Ince’s String Wound Filter Cartridges

1.High filtration accuracy, low differential pressure, high flow, high dirt holding capacity and long service life.
2.Filter pores are small inside and large outside to offer good depth filtration effect.
3. Ince’s String Wound Filter Cartridge are made of various materials to meet the filtration requirements of various liquids and achieve an ideal filtration effect.
4.Can be customized to meet unique industry requirements; a versatile choice for diverse filtration needs.
Compliant with stringent industry standards, ensuring reliable performance and peace of mind.

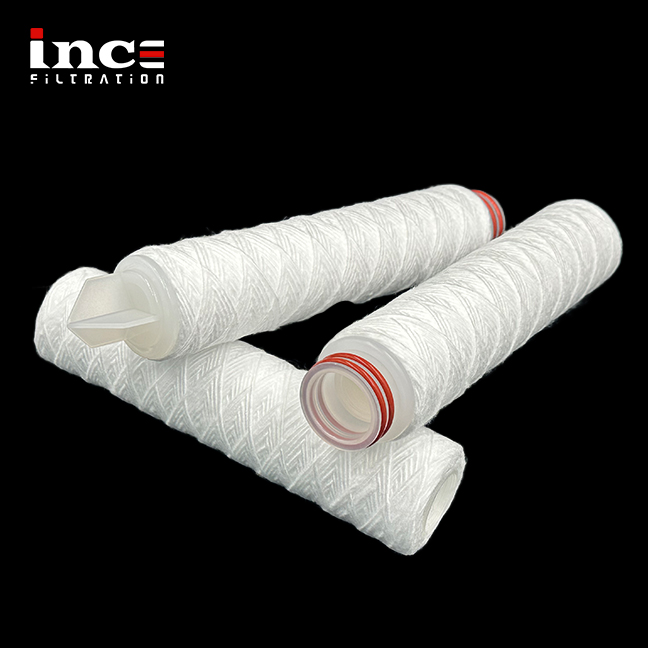

String Wound Filter Cartridges Details

Highly efficient filtration of impurities
The structure is sparse on the outside and dense on the inside, effectively intercepting particle impurities at all levels, with high dirt holding capacity and long service life.

Various Filter Materials
Polypropylene yarns, Skim cotton yarn, Fiberglass material.Three different materials, used in different environments.Water filtration to achieve precise filtration effect.

Customized On Demand
Various types of non-standard filter elements can be customized according to different needs of customers.

How Does A String Wound Cartridge Filter Work?

The string wound filter cartridge is woven to form a gradient density – tighter at the core and lighter on the outside. This means that bigger sediments are filtered out at the onset, and as the liquid passes through the medium, the finer particles get gradually filtered out at every layer. The winding pattern and controlled thickness of the cartridge results in higher dirt holding capacity and increases the life and efficiency of the filter.

String Wound Filter Cartridge Applications:

String wound variants are popularly used for liquid filtration in industries like Food and beverage, pharmaceuticals, water treatment, mining, chemical, oil & gas, gas and air, flue gas, Desalination and automotive.

Best Used For Filtration Of:

Water
Alkalis
Dilute acids and Alkalis
Organic acids and solvents
Potable liquids
Petroleum oils
Mineral acids

Food & Beverage	Pre-RO water filtration	PCB industry
Drinking water filter	Chemical filter solution	Electroplate liquid filtration
Petrochemical process	Pharmaceuticals process	Electronics and Semiconductor

What Is A Micron Rating?

Micron rating indicates the ability of the filter to remove contaminants by the size of particles. The quality of the yarn and the manufacturing quality have a significant impact on achieving a perfect micron rating. A filter with a 10-micron rating can capture and filter out contaminants as small as 10 microns.

Contaminants as thick as a human hair – 50 Microns
Contaminants not visible to human eye – 40 Micron
Contaminants of the size of white blood cells – 25 Micron
Contaminants of the size of red blood cells – 8 Micron
Contaminants of the size of Bacteria – 2 Micron

Search: Select from the options below to search our selection of String Wound Filter Cartridge. For questions or custom orders please Contact Us.
